DiClad 870 RF PCB Board 2-Layer with 35μm Copper Layers and 2.5mm Thickness for High-Frequency Applications

продукты

PCB ядра металла

Свяжитесь с нами

Ms. Ivy Deng

sales10@bichengpcb.com

86-755-27374847

Свяжитесь сейчас

DiClad 870 RF PCB Board 2-Layer with 35μm Copper Layers and 2.5mm Thickness for High-Frequency Applications

МОК:	1 шт
цена:	USD9.99-99.99
Стандартная упаковка:	Вакуумные сумки+коробки
Срок доставки:	8-9 рабочих дней
Способ оплаты:	T/T.
Пропускная способность:	5000 шт в месяц

Подробности Информация

Описание продукта

Подробная информация

Место происхождения

КИТАЙ

Фирменное наименование

Bicheng

Сертификация

UL, ISO9001, IATF16949

Номер модели

BIC-052.V1.0

Базовый материал:

ДиКлад 870

Количество слоев:

2-слойный

Толщина печатной платы:

2,5 мм

Размер печатной платы:

83 мм х 35 мм (1 кусок), +/- 0,15 мм

Медный вес:

1 унция (эквивалент 1,4 мили или 35 мкм)

Поверхностная отделка:

Погружение золота

Выделить:

2-Layer RF PCB Board

35μm Copper Layers PCB

2.5mm Thickness Printed Circuit Board

Описание продукта

DiClad 870 PCB 2-Layer: 35μm Copper Layers 2.5mm Thickness

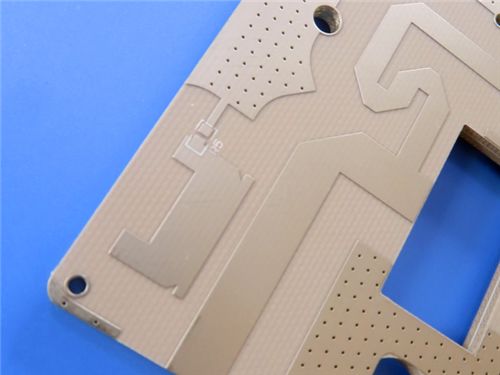

This 2-layer rigid PCB, built with Rogers DiClad 870 as its base material, is engineered to excel in high-frequency and low-loss electronic systems. With board dimensions of 83mm x 35mm (1 piece) and a tight tolerance of +/- 0.15mm, it provides a reliable and compact foundation for applications demanding consistent performance in diverse operating conditions.

PCB Details

Construction Detail	Specification
Base material	DiClad 870
Layer count	2-layer
Board dimensions	83mm x 35mm (1 piece), +/- 0.15mm
Minimum Trace/Space	5/9 mils
Minimum Hole Size	0.3mm
Finished board thickness	2.5mm
Finished Cu weight	Outer layers: 1 oz (1.4 mils)
Via plating thickness	20 μm
Surface finish	Immersion gold
Silkscreen	No
Solder Mask	No
Quality assurance (prior to shipment)	100% Electrical test

PCB Stack-up

The 2-layer rigid PCB features a precisely optimized stack-up to leverage DiClad 870's unique properties:

Layer/Material	Thickness Specification
Copper_layer_1	35 μm
DiClad 870 Core	2.362mm (93mil)
Copper_layer_2	35 μm

Artwork, Standards, and Availability

Artwork Format: You should supply the file. Gerber RS-274-X, a universal standard for PCB manufacturing data, ensuring seamless production and compatibility with industry workflows.

Quality Standard: Complies with IPC-Class-2, guaranteeing reliable performance for general electronic applications and meeting stringent industry requirements.

Availability: Offered worldwide, making it accessible for global projects across various industries, from telecommunications to aerospace.

Key Features of Rogers DiClad 870

DiClad 870 enhances the PCB's performance with a range of standout features:

Electrical Stability: Dielectric Constant (Dk) of 2.33 at 10 GHz and 1 MHz (50% RH), with a low dissipation factor of 0.0013 at 10 GHz and 0.0009 at 1 MHz--minimizing signal loss in high-frequency applications.
Thermal Coefficient of Dielectric Constant (TcDK): -161 ppm/°C over the range of -10~140°C (10 GHz), ensuring stable electrical performance across temperature fluctuations.
Mechanical and Environmental Resilience: Low moisture absorption (0.02%)--the lowest among PTFE-based composites--along with a copper peel strength of 14 lbs/in (10s @288°C), ensuring durability in harsh environments.
Safety and Reliability: Arc resistance >180 seconds and UL 94-V0 flammability rating, enhancing safety in critical applications.
Dimensional Stability: Coefficient of Thermal Expansion (CTE) of 17 ppm/°C (X-axis), 29 ppm/°C (Y-axis), and 217 ppm/°C (Z-axis), supporting consistent performance under thermal stress.

Benefits of DiClad 870

These features translate to critical advantages for the PCB:

Lowest Moisture Absorption: Ensures long-term reliability in humid or moisture-prone environments.
Stable Dk Over Frequency: Maintains consistent signal propagation across a wide range of operating frequencies, critical for multi-band systems.
Reduced Insertion Loss: Low Dk supports wider line widths, minimizing signal attenuation and enhancing overall system efficiency.

Typical Applications

Leveraging the performance of Rogers DiClad 870, this PCB is ideally suited for:

Radar Feed Networks
Commercial Phased Array Networks
Low Loss Base Station Antennas
Guidance Systems
Digital Radio Antennas
Filters, Couplers, and LNAs (Low-Noise Amplifiers)
