Rogers RO3010 PCB 25mil Thick Double-layer pcb Board

МОК:	1 шт.
цена:	USD9.99-99.99
Стандартная упаковка:	Вакуумные сумки+коробки
Срок доставки:	8-9 рабочих дней
Способ оплаты:	Т/Т
Пропускная способность:	5000 шт в месяц

Подробности Информация

Описание продукта

Подробная информация

Место происхождения

Китай

Фирменное наименование

Bicheng

Сертификация

UL, ISO9001, IATF16949

Номер модели

БИК-332.В1.0

Базовый материал:

Rogers RO3010

Количество слоев:

2 слоя

Толщина печатной платы:

0,8 мм

Размер печатной платы:

45 мм х 65 мм (1 шт.)

Шелковик:

Черный

Припаяя маска:

Медный вес:

1 унция (1,4 мила) для внешних слоев

Чистота поверхности:

Погружение золота

Выделить:

Rogers RO3010 PCB board

double-layer PCB board 25mil

Rogers high-frequency PCB

Описание продукта

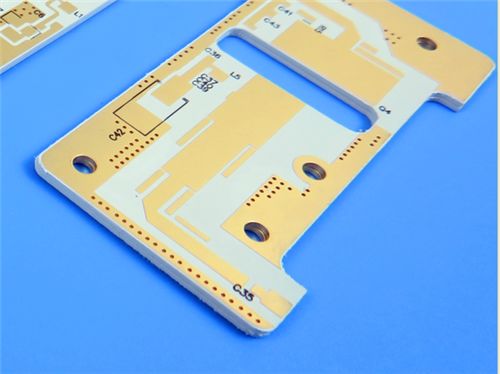

Rogers RO3010 PCB 25mil Thick Double-layer pcb Board

Crafted for precision and reliability, this 2-layer rigid PCB leverages Rogers RO3010--a ceramic-filled PTFE composite material--to deliver exceptional high-frequency performance, dimensional stability, and circuit miniaturization.

PCB Specification

Parameter	Specification
Layer Count	2-layer rigid PCB
Base Material	Rogers RO3010 (ceramic-filled PTFE composite)
Board Dimensions	45mm x 65mm (1 piece)
Finished Board Thickness	0.8mm
Finished Copper Weight (Outer Layers)	1oz (1.4 mils / 35μm)
Via Plating Thickness	20μm
Minimum Trace/Space	4 mils / 4 mils
Minimum Hole Size	0.3mm
Vias	12 total (no blind vias)
Surface Finish	Immersion Gold
Silkscreen	Top: Black; Bottom: No
Solder Mask	Top: No; Bottom: No
Quality Assurance	100% Electrical test prior to shipment

PCB Stack-up (Top to Bottom)

Layer Sequence	Layer Type	Specification	Thickness
1	Copper Layer (Top - L1)	Copper_layer_1	35μm (1oz)
2	Substrate	Rogers RO3010	0.635mm (25mil)
3	Copper Layer (Bottom - L2)	Copper_layer_2	35μm (1oz)

Rogers RO3010 Material Overview

Rogers RO3010 is an advanced circuit material categorized as a ceramic-filled PTFE composite, designed to deliver a high dielectric constant (Dk) with exceptional stability across broad frequencies and environmental conditions. As a competitively priced solution, it combines superior mechanical and electrical performance, simplifying the design of broadband components while enabling circuit miniaturization-- a key advantage for space-constrained applications. Its consistent characteristics make it suitable for a wide range of high-frequency use cases, from automotive radar to satellite communications, while supporting volume manufacturing with cost-effective pricing.

Key Features of Rogers RO3010

Property	Specification
Dielectric Constant (Dk)	10.2 ±0.30 (10GHz/23°C)
Dissipation Factor (Df)	0.0022 (10GHz/23°C)
Coefficient of Thermal Expansion (CTE)	X-axis: 13 ppm/°C; Y-axis: 11 ppm/°C; Z-axis: 16 ppm/°C (-55°C to 288°C)
Thermal Decomposition Temperature (Td)	>500°C
Thermal Conductivity	0.95 W/mK
Moisture Absorption	0.05%
Operating Temperature Range	-40°C to +85°C
Quality Certification	ISO 9001 Certified

Core Benefits of Rogers RO3010

Dimensional Stability: CTE closely matched to copper, ensuring minimal warpage or layer separation during thermal cycling and processing.
Cost-Effective Volume Production: Economical laminate pricing makes it ideal for high-volume manufacturing without compromising performance.
Broadband Compatibility: Exceptional electrical and mechanical stability across a wide frequency range, simplifying broadband component design.
Circuit Miniaturization: High Dk enables smaller circuit footprints, supporting space-efficient designs for compact devices.
Multi-Layer Versatility: Suitable for multi-layer board designs, offering flexibility for complex circuit architectures.

Typical Applications

This 2-layer RO3010 PCB is tailored for high-frequency, high-reliability systems across industries:

Automotive radar applications (e.g., adaptive cruise control, collision avoidance)
Global Positioning System (GPS) antennas
Cellular telecommunications systems (power amplifiers, antennas)
Patch antennas for wireless communications
Direct broadcast satellite (DBS) equipment
Cable system datalinks
Remote meter readers
Power backplanes

Compliant with IPC-Class-2 standards and available globally, it is engineered to meet the demands of automotive, telecommunications, and satellite systems, where a high dielectric constant (Dk) and low loss are non-negotiable.
