Rogers RT duroid 5880 PCB 1.6mm Double-Sided RF Circuit Board

МОК:	1 шт.
цена:	USD9.99-99.99
Стандартная упаковка:	Вакуумные сумки+коробки
Срок доставки:	8-9 рабочих дней
Способ оплаты:	Т/Т
Пропускная способность:	5000 шт в месяц

Подробности Информация

Описание продукта

Подробная информация

Место происхождения

Китай

Фирменное наименование

Bicheng

Сертификация

UL, ISO9001, IATF16949

Номер модели

БИК-332.В1.0

Базовый материал:

Rogers RT/duroid 5880

Количество слоев:

2 слоя

Толщина печатной платы:

1,6 мм

Размер печатной платы:

90 мм х 90 мм (1 шт.) ± 0,15 мм

Шелковик:

Припаяя маска:

Медный вес:

1 унция (1,4 мила) для внешних слоев

Чистота поверхности:

Погружение золота

Выделить:

Rogers RT duroid 5880 PCB

double-sided RF circuit board

1.6mm Rogers PCB board

Описание продукта

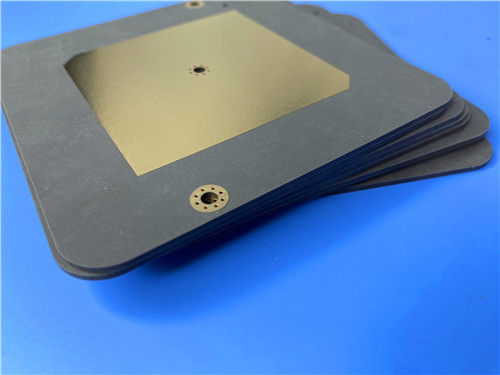

Rogers RT duroid 5880 PCB 1.6mm Double-Sided RF Circuit Board

This high-performance PCB is constructed with Rogers RT/duroid 5880--a premium PTFE composite reinforced with glass microfibers--and engineered for demanding high-frequency applications.

PCB Specification

Parameter	Details
Base Material	Rogers RT/duroid 5880 (PTFE composite reinforced with glass microfibers)
Layer Count	2-layer rigid PCB
Board Dimensions	90mm x 90mm (1 piece)±0.15mm
Minimum Trace/Space	5/5 mils
Minimum Hole Size	0.3mm
Via Type	No blind vias (thru-hole vias only)
Finished Board Thickness	1.6mm
Copper Weight (Finished)	1oz (equivalent to 1.4 mils / 35 μm per layer)
Via Plating Thickness	20 μm
Surface Finish	Immersion Gold (for enhanced conductivity and corrosion resistance)
Silkscreen	Top: No; Bottom: No
Solder Mask	Top: No; Bottom: No
Quality Assurance	100% Electrical test prior to shipment

PCB Stack-up Details

The board's stack-up is optimized for consistent electrical performance and mechanical stability:

Layer Type	Material/Description	Thickness
Copper Layer 1	Conductive copper (finished)	35 μm (1oz)
Dielectric Layer	Rogers RT/duroid 5880	5.575 mm (62 mils)
Copper Layer 2	Conductive copper (finished)	35 μm (1oz)

Material Overview: Rogers RT/duroid 5880

Rogers RT/duroid 5880 is a premium high-frequency laminate designed for stripline and microstrip circuits. Its randomly oriented glass microfibers deliver exceptional dielectric constant uniformity, while its PTFE base ensures low electrical loss--making it ideal for applications requiring reliability across wide frequency ranges. The material is resistant to all solvents and reagents (hot or cold) used in PCB etching, plating, and processing, and it supports lead-free manufacturing processes.

Key Material Features

Specification	Value
Dielectric Constant (εr)	2.2 ± 0.02 at 10 GHz / 23°C (uniform panel-to-panel)
Dissipation Factor (tanδ)	0.0009 at 10 GHz
Temperature Coefficient of Dielectric Constant (TCDk)	-125 ppm/°C
Moisture Absorption	0.02%
Coefficient of Thermal Expansion (CTE) - X-axis	31 ppm/°C
Coefficient of Thermal Expansion (CTE) - Y-axis	48 ppm/°C
Coefficient of Thermal Expansion (CTE) - Z-axis	237 ppm/°C
Thermal Stability (Td, 5% weight loss via TGA)	500 °C
Flammability Rating	UL 94-V0
Lead-Free Compatibility	Yes (RoHS-compliant process compatible)
Isotropy	Yes (uniform properties across all axes)

Core Benefits

Consistent Electrical Performance: Uniform dielectric constant and low dissipation factor over wide frequency ranges (supports Ku-band and above, including millimeter waves)
Easy Fabrication: Simple to cut, shear, and machine to custom shapes
Chemical Resistance: Withstands solvents and reagents used in etching, hole plating, and PCB processing
Moisture Resilience: Near-zero moisture absorption (0.02%) makes it ideal for high-humidity or harsh environments
Proven Reliability: Well-established material with a track record in critical applications
Lowest Loss for Reinforced PTFE: Superior electrical efficiency compared to other reinforced PTFE laminates

Typical Applications

This PCB is engineered for high-performance systems requiring precision and reliability, including:

Commercial airline broadband antennas
Microstrip and stripline circuits
Millimeter wave communication systems
Radar systems
Guidance systems
Point-to-point digital radio antennas
