RT duroid 6006 PCB Rogers 10mil Laminate Black Silkscreen

продукты

PCB ядра металла

Свяжитесь с нами

Ms. Ivy Deng

sales10@bichengpcb.com

86-755-27374847

Свяжитесь сейчас

RT duroid 6006 PCB Rogers 10mil Laminate Black Silkscreen

МОК:	1 шт.
цена:	USD9.99-99.99
Стандартная упаковка:	Вакуумные сумки+коробки
Срок доставки:	8-9 рабочих дней
Способ оплаты:	Т/Т
Пропускная способность:	5000 шт в месяц

Подробности Информация

Описание продукта

Подробная информация

Место происхождения

Китай

Фирменное наименование

Bicheng

Сертификация

UL, ISO9001, IATF16949

Номер модели

БИК-332.В1.0

Базовый материал:

Роджерс RT/дуроид 6006

Количество слоев:

2 слоя

Толщина печатной платы:

0,35 мм

Размер печатной платы:

43 мм х 107,5 мм (1 шт.) ± 0,15 мм

Шелковик:

Черный

Припаяя маска:

Медный вес:

1 унция (1,4 мила) для внешних слоев

Чистота поверхности:

Погружение золота

Выделить:

RT duroid 6006 PCB laminate

Rogers 10mil PCB board

Black silkscreen Rogers PCB

Описание продукта

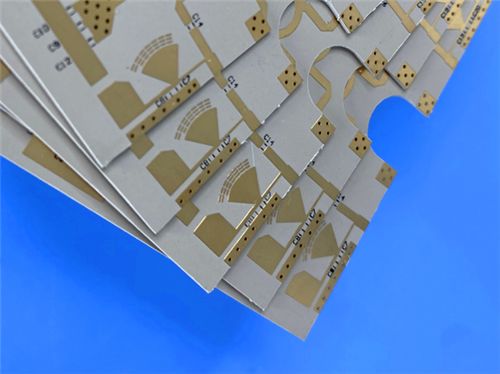

RT duroid 6006 PCB Rogers 10mil Laminate Black Silkscreen

This high-performance 2-layer PCB is constructed with Rogers RT/duroid 6006--a ceramic-PTFE composite engineered for electronic and microwave applications requiring high dielectric constant (Dk) and low loss. Designed to enable circuit size reduction while maintaining repeatable performance, it adheres to IPC-Class-2 standards and is optimized for X-band and below operations.
