Rogers 3010 PCB Double-layer 20mil RF laminate with Immersion Silver

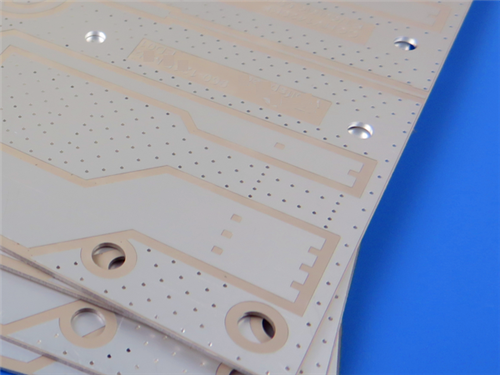

This 2-layer rigid printed circuit board (PCB) is constructed using Rogers RO3010 as its core substrate and features an Immersion Silver surface finish. Equipped with a 1oz (1.4 mils) copper weight on the outer layers, a finished board thickness of 0.5mm, and a via plating thickness of 20 μm, the PCB delivers stable electrical performance and precise manufacturing quality, making it highly suitable for a broad range of high-frequency and wireless electronic applications.

PCB Specifications

PCB Stack-up

Artwork Type

The artwork provided for PCB manufacturing complies with the Gerber RS-274-X format, the industry-standard protocol for transmitting PCB fabrication data.

Quality Standard

This PCB meets the IPC-Class-2 standard, a widely recognized industry benchmark for printed circuit boards. IPC-Class-2 defines the requirements for PCB quality, performance, and reliability, making it appropriate for most commercial and industrial applications that demand consistent performance and moderate reliability.

Availability

This PCB is available worldwide. We provide dependable logistics and shipping services to ensure timely delivery to customers in various countries and regions, supporting both small-batch and large-volume orders. Whether for regional electronic companies, research institutions, or global technology enterprises, we offer consistent supply and professional after-sales support to meet diverse market requirements.

Introduction to RO3010 Base Material

Rogers RO3010 advanced circuit materials are ceramic-filled PTFE composites that provide a higher dielectric constant with superior stability. As cost-effective products, they offer exceptional mechanical and electrical stability, which simplifies the design of broadband components and enables their use in a wide array of applications across an extensive frequency range. The inherent characteristics of this material make RO3010 laminates highly suitable for circuit miniaturization.

Key Features of RO3010

Benefits

-The material demonstrates excellent dimensional stability, with a thermal expansion coefficient compatible with copper

-Competitive pricing for laminates, making it ideal for high-volume manufacturing processes

-ISO 9001 Certified, ensuring consistent quality and reliable performance

-Compatible with multi-layer board designs, providing versatile application capabilities

Typical Applications

• Automotive radar applications
• Global positioning satellite antennas
• Cellular telecommunications systems – power amplifiers and antennas
• Patch antennas for wireless communications
• Direct broadcast satellites
• Datalinks on cable systems
• Remote meter readers
• Power backplanes

Conclusion

This PCB is well-suited for professionals, organizations, R&D institutions, and technology enterprises involved in automotive radar, GPS antennas, cellular telecommunications, and other wireless/high-frequency equipment manufacturing. With global availability, rigorous pre-shipment electrical testing, and flexible order support, it meets the specialized high-performance needs of electronic enterprises worldwide, serving as a reliable solution for high-demand applications by leveraging the high-performance RO3010 material.
